▼特 点/Characteristics：
●符合国际IEC34-1CE标准，全封闭鼠笼式异步电机。
In line with international IEC34-1CE standard, completely closed squirrel-cage asynchronous motor.
●电机外壳、机轴和机体底盖均由防腐蚀性不锈钢材料制成。
The motor casing, machine shaft and body bottom cover are made of anti-corrosion stainless steel material.
●机头用铜合金或镀铬铸铁材料制成。
The head is made of copper alloy or chrome-plated cast iron material.
●压力自动调节装置用耐油耐水的改性丁腈橡胶。
Pressure automatic adjustment device with oil resistant to water modified nitrile rubber.
●按NEMA即美国电气制造商协会标准法兰接头连接。
By NEMA, American Electrical Manufacturers Association standard flange Connector.
●漆包线符合美国NEMA MW37-C标准..独特的高压释放装置能保证水井使用更安全。
Enameled wire complies with United States NEMA mw37-c standard. A unique high-pressure release device ensures a better use of the wells.
▼性 能/Performance：
●功率：单相0.37kw-2.2kw 三相：0.37kw-7.5kw
Power: single-phase 0.37kw-2.2kw three-phase: 0.37kw-7.5kw
●电压：50HZ 单相:220V(±5%) 50HZ 三相:220V、380V(±5%) 60HZ 单相:110V/115V、220V(±5%) 60HZ 三相:220V、380V(±5%)、440V
Voltage: 50HZ Single phase: 220V (±5%) 50HZ three-phase: 220V, 380V (±5%) 60HZ Single phase: 110v/115v, 220V (±5%) 60HZ three-phase: 220V, 380V (±5%), 440V
●轴向压力：1500N(0.37kw-2.2kw) 2300N(3.0kw-4.0kw) 4000N(5.5kw-7.5kw)
Axial pressure:1500N(0.37kw-2.2kw) 2300N(3.0kw-4.0kw) 4000N(5.5kw-7.5kw)
●保护装置的等级：IP58
Rating of protective devices:IP58
●绝缘等级：Class F
Insulation Grade:Class F
●最高耐温：摄氏零上40度
Maximum temperature: Above 40℃
●所需流经电机的最少水流：8cm/秒
Minimum flow of water required to flow through the motor: 8cm/sec
●水的PH值要求：6.5-8.0
Water PH Requirements:6.5-8.0
●每小时最多启动次数：30次
Maximum boot times per hour: 30 times
●可潜水的最大深度350米
Maximum diving depth of 350 meters
●可垂直或水平安装
Can be installed vertically or horizontally
●电机受热继电器(温度控制)实现超负载安全保护。
Motor Thermal relay (temperature control) to achieve the overload protection.
●超负载安全保护器的动作时间：小于10秒(负载为额定电流值5倍时)。
The action time of the overload security Protector: Less than 10 seconds (load is 5 times times the rated current value).
●扁平式，带有独立的地线的4×2.5mm2防水联接电缆。 电机引出线长度：1米(0.37-1.1kw)；1.4米(1.5-2.2kw)；1.6米(3.0kw)；2.3米(4.0-5.5kw)；3.1米(7.5kw)。
Flat, 4x2.5mm2 waterproof connection cable with separate ground wire. Motor Lead line length: 1 m (0.37-1.1kw) 1.4 m (1.5-2.2kw) 1.6 m (3.0kw) 2.3 m (4.0-5.5kw) 3.1 m (7.5kw).
●可按客户要求提供特殊规格的产品。
According to customer requirements to provide special specifications products.

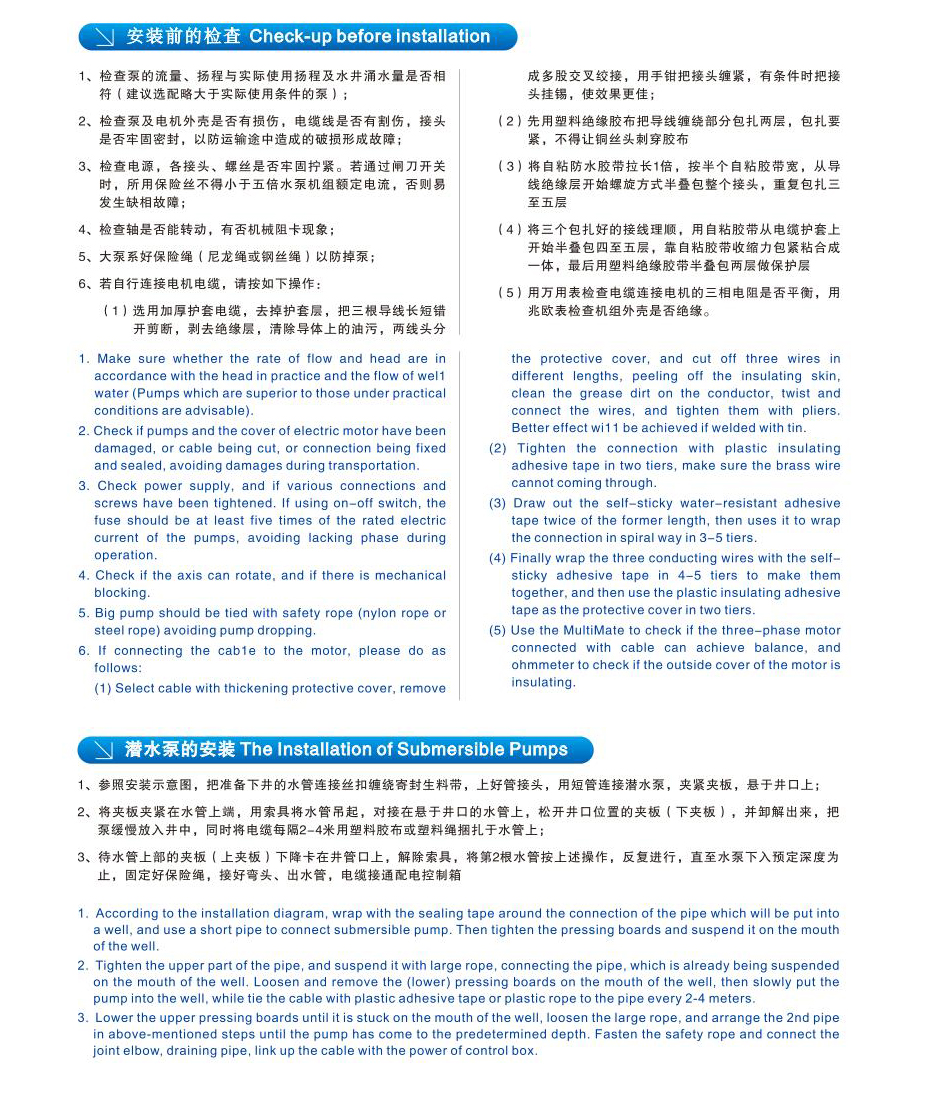

▼使用说明/Operation Instructions：

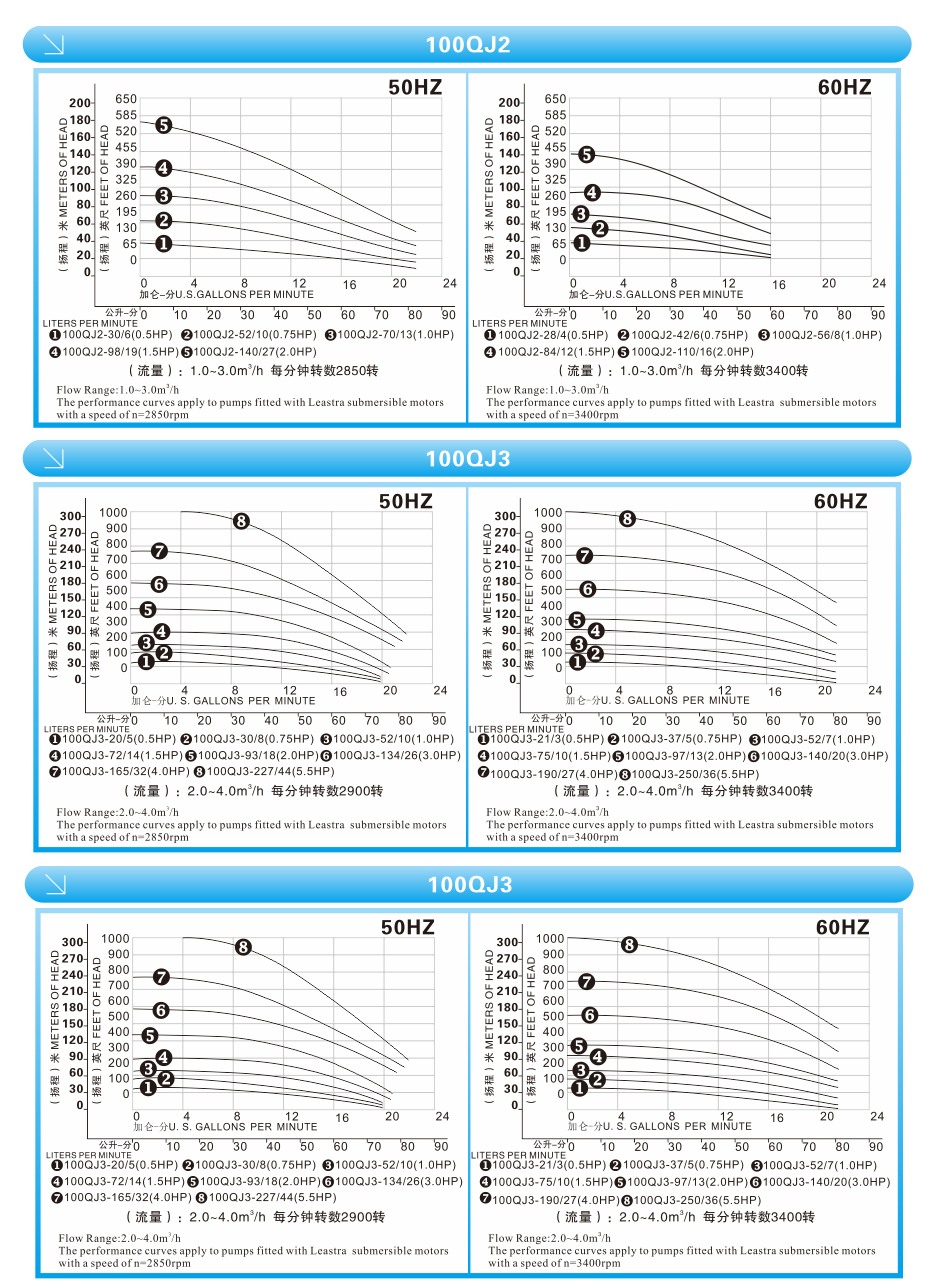

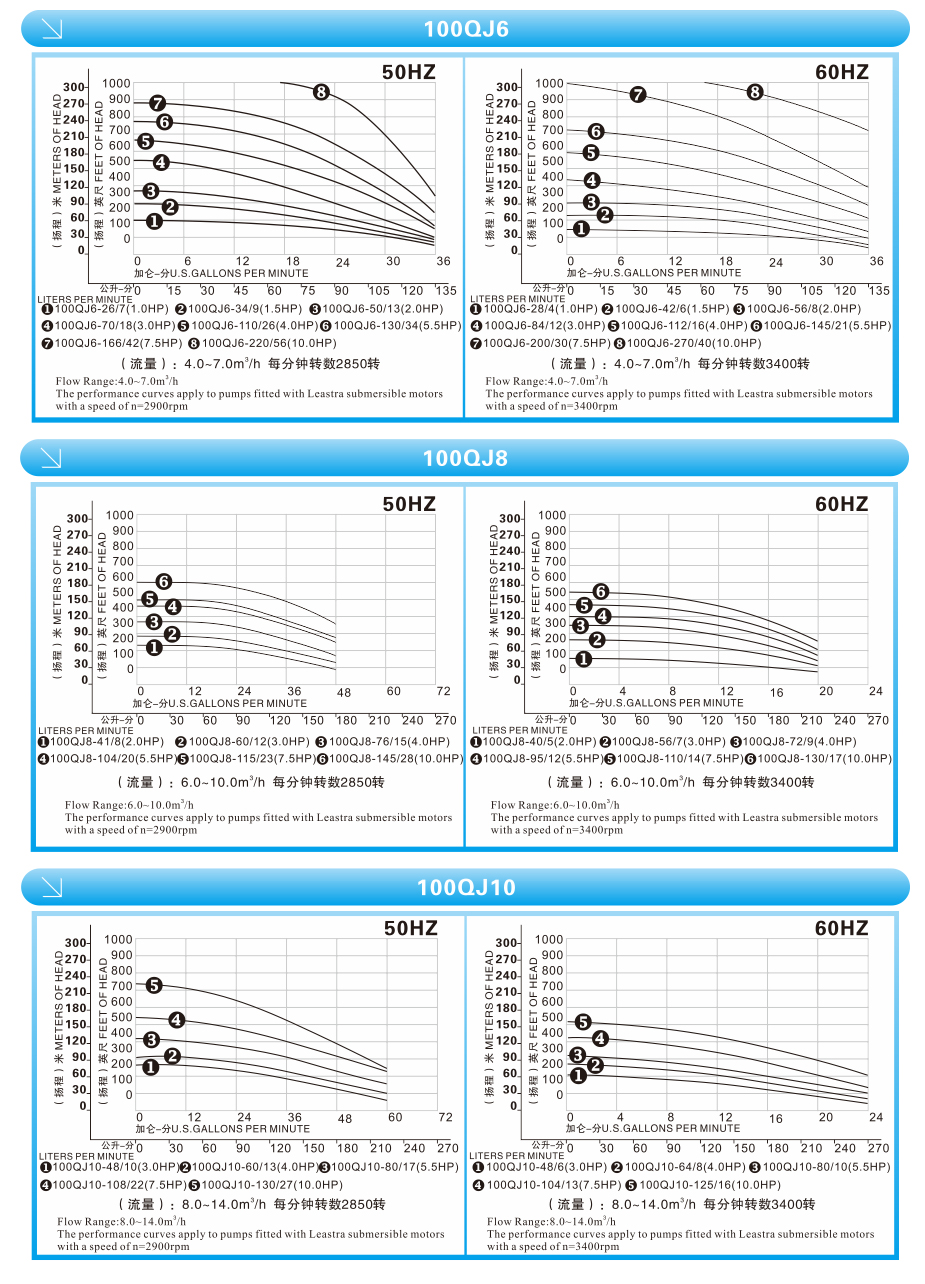

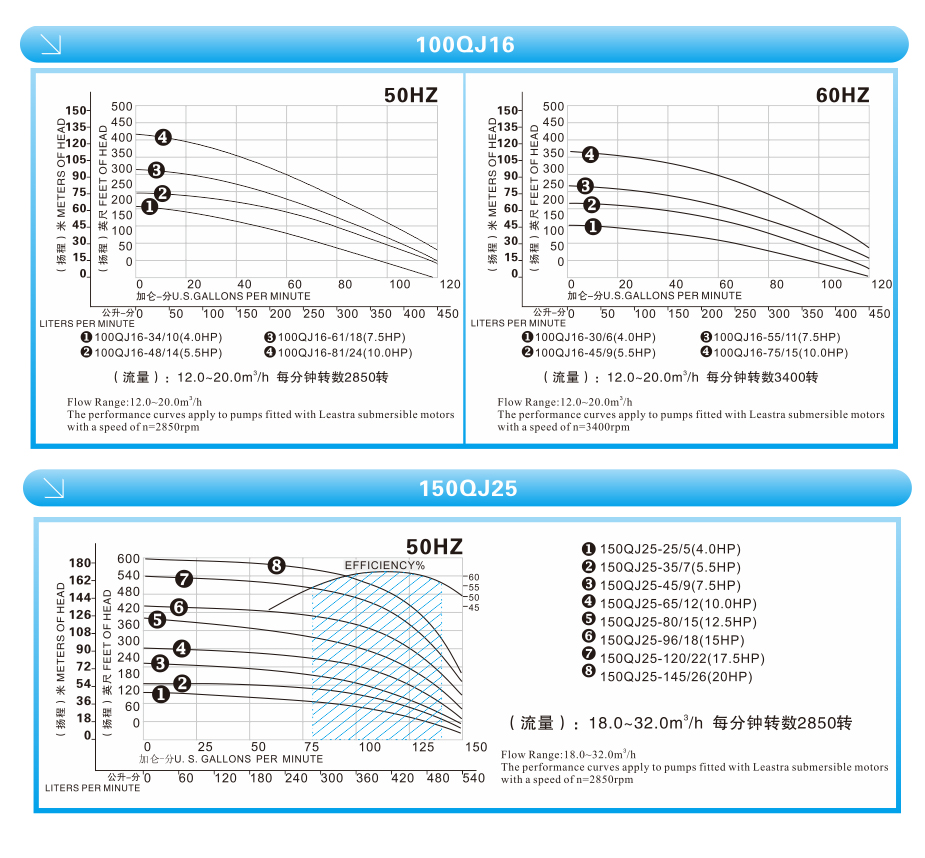

▼性能曲线/Performance Curves：
